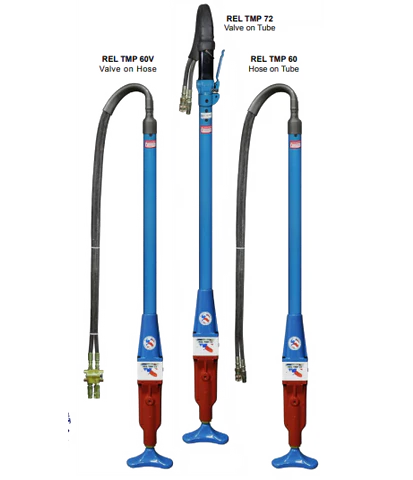

Reliable Equipment REL-TMP-72 Hydraulic Pole Tamper – 72", Valve on Tube
The Reliable Equipment REL-TMP-72 Hydraulic Pole Tamper makes quick work of setting poles, asphalt patching, and general construction backfill compaction. At 72" with a valve-on-tube configuration, it delivers 1,160 blows per minute at 5 gpm with only 3 moving parts — engineered for low maintenance and long service life in demanding utility and construction environments. The reversible On/Off valve is compatible with both Open- and Closed-Center hydraulic systems via a rotate trigger selector.
Key Features
- Only 3 moving parts — minimal complexity for low maintenance and high reliability in the field
- 1,160 blows per minute at 5 gpm — high-frequency impact for fast, efficient compaction
- Valve-on-tube configuration — rotate trigger selector for Open- and Closed-Center hydraulic system compatibility
- Standard kidney-shaped foot (2.5" x 8") — optimized foot geometry for pole setting and backfill compaction
- 72" length — extended reach for comfortable operation during pole setting
- SAE O-Ring port threads — 9/16-18 pressure port and 3/4-16 return port for standard hydraulic connections
Specifications
| Attribute | Detail |
|---|---|
| Model | REL-TMP-72 |
| Length | 72" |
| Configuration | Valve on Tube |
| Width | 4" |
| Flow Range | 4–6 gpm |
| Pressure | 1,000–2,000 PSI |
| Blows Per Minute | 1,160 @ 5 gpm |
| Pressure Port Thread | 9/16-18 SAE O-Ring |
| Return Port Thread | 3/4-16 SAE O-Ring |
| Standard Foot Size | 2.5" x 8" kidney-shaped |
| Moving Parts | 3 |
| Vendor | Reliable Equipment |
Quick Decision Guide
- Setting utility poles? — The REL-TMP-72 is purpose-built for pole setting and backfill compaction
- Need Open- or Closed-Center hydraulic compatibility? — The rotate trigger selector on the valve-on-tube supports both systems
- Need a 72" reach? — This is the 72" valve-on-tube model; contact us if you need the 60" direct-coupled configuration
- Concerned about maintenance downtime? — With only 3 moving parts, the REL-TMP-72 is one of the lowest-maintenance tampers available
Frequently Asked Questions
What applications is the REL-TMP-72 designed for?
The REL-TMP-72 is designed for utility pole setting, asphalt patch compaction, and general construction backfill compacting.
What hydraulic flow and pressure does this tamper require?
The REL-TMP-72 requires a flow range of 4–6 gpm and operates at 1,000–2,000 PSI.
Is this tamper compatible with Open-Center hydraulic systems?
Yes — the valve-on-tube configuration uses a rotate trigger selector to switch between Open- and Closed-Center systems.
What is the standard foot size?
The standard foot is a 2.5" x 8" kidney-shaped foot, optimized for pole setting and compaction applications.
How many blows per minute does the REL-TMP-72 deliver?
At 5 gpm, the REL-TMP-72 delivers 1,160 blows per minute.
Related Products
- Browse All Utility Ground Tools
- All Utility Tools
Original: $2,371.20
-65%$2,371.20
$829.92Product Information
